Discover how asymmetric carbon rims improve spoke tension balance, enhance wheel durability, and extend component life. Learn why this design is becoming essential in MTB, gravel, and road OEM projects.
Asymmetric rims feature an offset nipple bed on the inner circumference. While not a new concept in mountain biking, asymmetric rim profiles are increasingly adopted in road and gravel disciplines. The primary advantage of this design is the improved balance of spoke tensions between the drive and non-drive sides, resulting in stronger, more durable wheels.This article explains the benefits of asymmetric rims to help you make informed decisions for your next OEM rim or wheel project.
Hub Offset and Uneven Tensions
Modern hubs—especially those for disc brakes or multi-gear systems—create challenges for wheel builders. Because flange-to-center distances are uneven, symmetric rims produce unequal bracing angles. This is particularly noticeable on rear wheels: drive-side spokes bear higher tension, while non-drive side spokes may need to be loosened by up to ~40% to achieve a centered wheel.
Low-tension spokes move and flex more during rides, leading to:
- Increased component wear
- Snappy ride feel but reduced stability
- Wheels going out of true more frequently
Some builders attempt to compensate by tightening high-tension spokes, but this can lead to broken spokes or damage to rims and hubs.
How Asymmetric Rims Balance Spoke Tensions

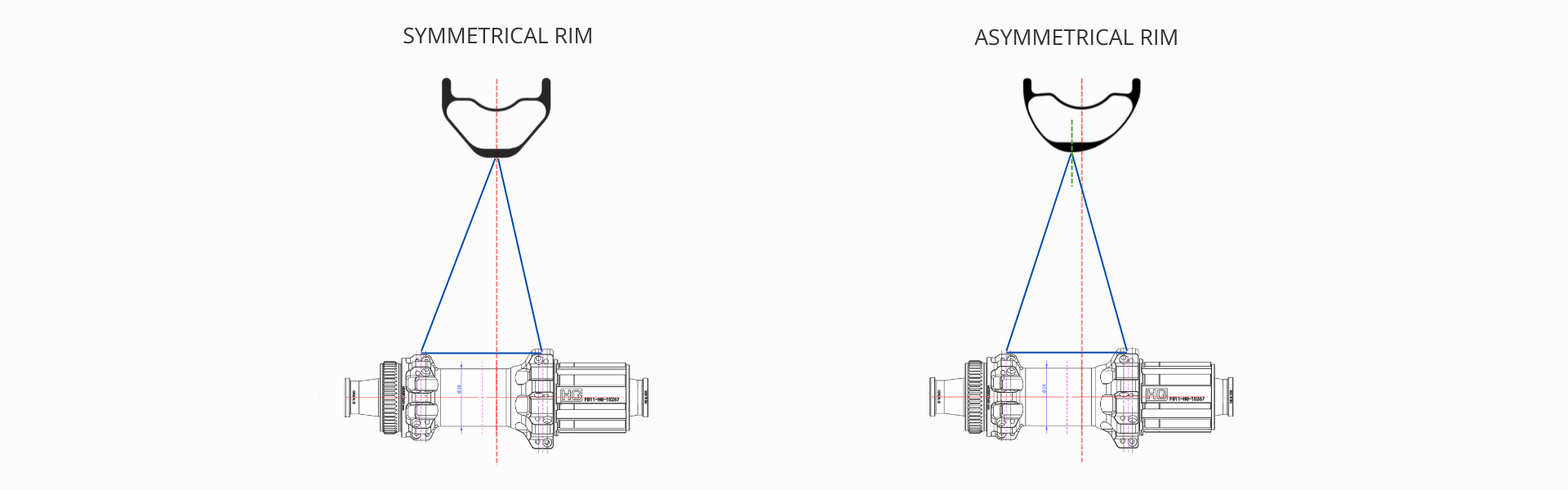

Asymmetric rims maintain the rim bed centerline but offset the nipple bed toward the low-tension side. This adjustment balances bracing angles, creating an isosceles triangle of spoke tensions.
The typical offset ranges from 2–3 mm, depending on rim width, intended use, and hub design.
Benefits of Rim Offset
- Balanced spoke tensions for wheels that stay true longer
- Reduced maintenance and longer component life
- Improved ride quality and stability
Potential Drawbacks
- Slight weight increase compared to symmetric rims
- Marginally reduced structural strength in certain use cases
NTP’s Asymmetric Rim Portfolio
We incorporate asymmetric profiles across our MTB and select gravel rims. VIEW ALL OPEN-MOLD PRODUCTS >>
|
Model
|
Intended Usage
|
Offset
|
Inner Width
|
Outer Width
|
Depth
|
|
EN32-23
|
Enduro, E-MTB
|
3mm
|
32mm
|
39mm
|
22~23mm
|
|
XC30-22
|
Cross Country
|
3mm
|
30mm
|
35mm
|
22mm
|
|
G30-45
|
Gravel, All Road
|
2mm
|
30mm
|
34.1mm
|
45mm
|
|
G28-45
|
Gravel, All Road
|
2mm
|
28mm
|
34.1mm
|
45mm
|
Start Your Custom OEM Project
Looking to develop a private mold or custom rim? Share your specifications and performance goals with us. From product drawings and layup design to pilot runs and mass production, NTP handles the process from start to finish.Contact us today to discuss your next rim or wheel project.
