Steel Spokes Selection Guide for Performance Wheel Systems

Introduction

Spokes are critical structural elements in a wheel system, functioning as tensile members that transfer load between the hub and rim. Their specifications directly influence wheel strength, stiffness, weight, and long-term durability. In many high-performance wheel builds, spoke cost and engineering complexity can rival—or even exceed—that of rims and hubs.

Details

While alternative materials such as titanium and high-performance fibers (e.g., carbon composites, Dyneema, PBO) are emerging in niche applications, stainless steel spokes remain the industry standard due to their optimal balance of cost efficiency, fatigue resistance, and manufacturing versatility.

This guide focuses exclusively on steel spokes, providing a structured overview of spoke construction types, engineering principles, and key selection parameters for OEM and ODM wheel projects.

Spoke Gauge, Strength, and Structural Characteristics

Spoke gauge refers to the wire diameter, which directly affects tensile strength, stiffness, and overall wheel behavior. Lower gauge numbers indicate thicker and stronger spokes.

Gauge	12G	13G	14G	15G
Diameter (mm)	2.6	2.3	2.0	1.8
Strength level	Higest	Very High	High	Moderate
Weight	Heaviest	High	Low	Lowest

In general:

Thicker spokes offer higher static strength and stiffness
Thinner spokes reduce weight and improve compliance
Final wheel performance depends on system design rather than spoke thickness alone

Spoke Construction Types: Straight Gauge, Butted, and Bladed

Steel spokes are commonly categorized based on how their diameter varies along the length of the spoke. This geometry plays a critical role in determining wheel strength, weight efficiency, fatigue resistance, and overall ride performance.

Spoke tapering is achieved through cold forging rather than material removal or stretching. During this process, the steel is plastically deformed, which improves tensile strength through work hardening. As a result, reduced-diameter sections achieve higher strength-to-weight efficiency while maintaining structural integrity in critical load zones.

Straight Gauge (Plain Gauge) Spokes

Straight gauge spokes maintain a uniform diameter from head to thread.

They are typically:

Cost-effective
Structurally simple
Heavier compared to performance spokes

However, due to their higher stiffness and limited elasticity, straight gauge spokes may transmit higher peak stress under impact conditions. As a result, some high-end wheel systems avoid their use in performance applications to reduce fatigue risk and improve ride durability.

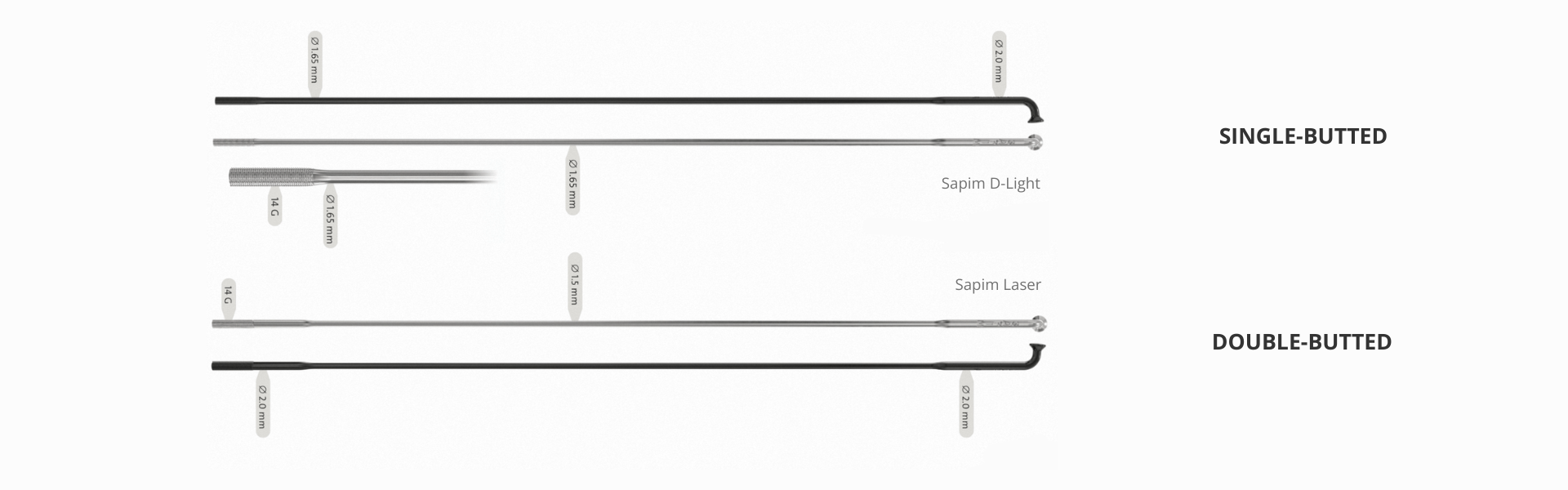

Butted Spokes (Single, Double, Triple Butted)

Butted spokes feature variable diameter sections, typically thicker at the ends and thinner in the center. This design optimizes the balance between strength, weight, and fatigue resistance.

Single-butted spokes: Reinforced at one end, often used in heavy-duty applications such as e-bikes or wheel rebuilding scenarios where flange wear is a concern.
Double-butted spokes: Industry standard for performance wheels. They provide an optimal balance of strength, elasticity, and weight reduction.
Triple-butted spokes: Less common, with additional reinforcement at stress zones, typically used in specialized high-load applications.

Among these, double-butted spokes remain the most widely adopted due to their superior fatigue performance and ride quality characteristics.

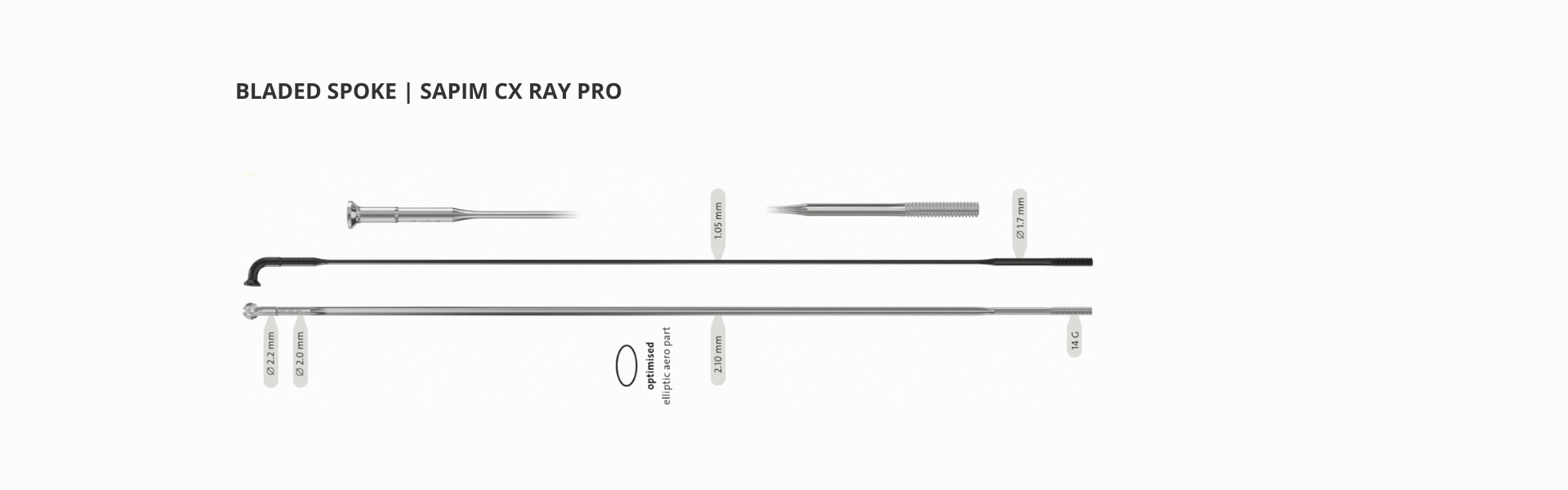

Bladed Spokes (Aero Performance Spokes)

Bladed spokes feature a flattened central section designed to reduce aerodynamic drag while maintaining torsional stiffness.

Key advantages include:

Improved aerodynamic efficiency
High strength-to-weight ratio
Enhanced torsional stability during acceleration and braking

A widely recognized example is the Sapim CX-Ray, which is a stainless steel bladed spoke used across road, gravel, cyclocross, and XC applications, valued for its durability and consistent performance under varied load conditions.

In recent product development trends, manufacturers such as Sapim have expanded their portfolio with upgraded variants and alternative material technologies, as well as extended spoke length ranges to accommodate emerging wheel formats, including larger-diameter systems such as 32-inch wheel applications.

Spoke Length and System Compatibility

Spoke length measurement varies between J-bend and straight-pull designs.

J-bend spokes: Length is measured from below the elbow bend.
Straight-pull spokes: Length is measured from the head seating interface.

While J-bend designs were historically considered a fatigue-sensitive geometry due to stress concentration at the elbow, modern manufacturing precision has significantly improved consistency and durability, narrowing the performance gap with straight-pull systems.

Accurate spoke length calculation is essential prior to wheel assembly or OEM production. The key rim parameter is the Effective Rim Diameter (ERD), also known in some systems as the Nipple Seat Diameter (NSD).

NTP’s Open-Mold Rim ERD

Model	Usage	ERD	Width	Depth	Weight
EN32-23	Enduro	592mm	32/39mm	22/23mm	480g+/-15
XC30-22	MTB XC	594mm	30/35mm	22mm	270g+/-15
G30-45	Gravel/Adventure	550mm	30/34mm	45mm	410g+/-15
G28-45	Gravel/Adventure	550mm	28.5/34mm	45mm	400g+/-15
G30-50	Gravel Racing	539mm	30/38mm	50mm	460g+/-15
R25-45	All-Road	550mm	25/30mm	45mm	360g+/-15
R25-52	All-Road	536mm	25/30mm	52mm	380g+/-15
R23-55	Road	530mm	23/28.5mm	55mm	415g+/-15
R23-60	Road Racing	520mm	23/28.5mm	60mm	420g+/-15
R23-168	Tri, Flat Road	303mm	23/28.5mm	168mm	780g+/-15
R21-40	Road	560mm	21/26.4mm	40mm	360g+/-15
R21-50	Road	540mm	21/26.4mm	50mm	375g+/-15

Spoke Length Calculation Tools

Spoke length must be determined using a combination of:

ERD (rim specification)
hub flange diameter
hub flange spacing (center-to-flange distance)
spoke pattern (e.g., 2-cross, 3-cross)

Common calculation tools include:

Sapim Spoke Calculator
DT Swiss Spoke Calculator
Spoke Calc Calculator

For production-level accuracy, we recommend validating calculated values through prototype wheel building and tension testing prior to mass production.

Looking for Custom Wheel System Development?

We provide OEM and ODM solutions for carbon rims and complete wheel systems, including customized spoke specifications, hub compatibility optimization, and full wheel assembly engineering support.

Contact us to discuss your next wheel project and receive technical consultation for your specification requirements.
