Spoke Tension Meter Calibration: Why It's Essential and How to Do It
Introduction
When building high-performance wheels, ensuring that spoke tension is consistent and accurate is crucial. Uneven spoke tension or incorrect tension can lead to poor wheel performance and durability. To maintain optimal wheel quality, it's essential to calibrate your spoke tension meter regularly.
Details
Whether you're a wheel builder in search of a cost-effective calibration tool, or a wheel brand looking to better understand spoke tensioning, this guide will walk you through why calibration is important and how to do it effectively.
Why Is Calibration Necessary?

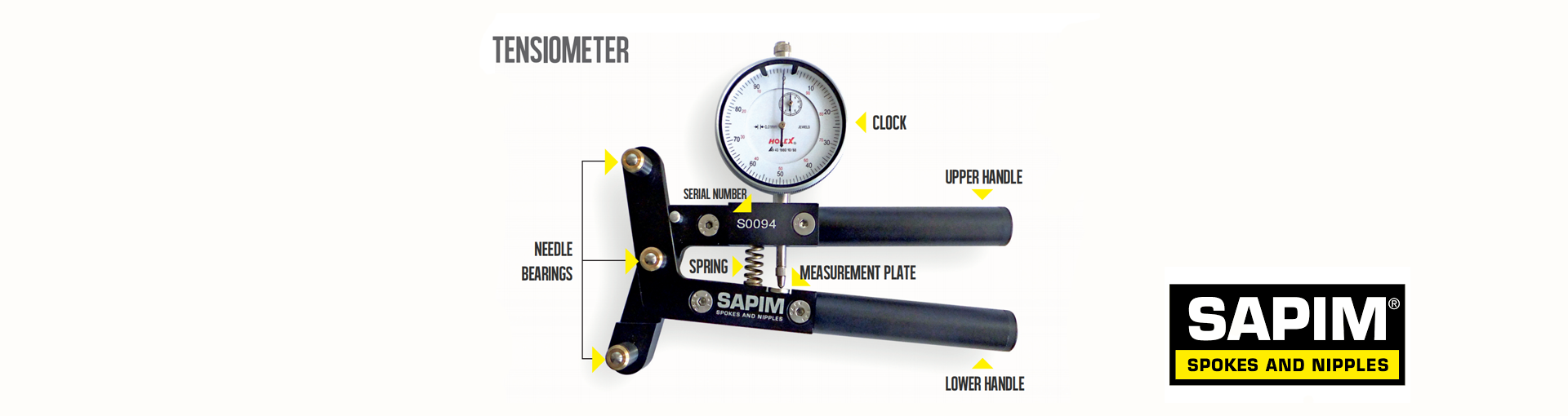

Spoke tension meters are precision instruments that typically consist of two handles, a spring, and a gauge (with 0.01mm accuracy). They measure the deformation of the spoke as a result of the spring force, and then display this reading on a clock-like dial. Trusted manufacturers like Parktool, Sapim, and DT Swiss ensure that new tension meters are accurately calibrated when you purchase them. These meters often come with a reference table that lists spoke models, clock readings, and corresponding tension values (in kgf or Newtons).
However, calibration is not a one-time process. Over time, various factors can cause the readings to drift, including:
Spring wear: The spring in the tension meter can lose its effectiveness over time.
Spoke variations: Differences in spoke dimensions (such as round vs. bladed spokes) can affect readings.
Improper usage: Handling the tool incorrectly can lead to inaccurate readings (Sapim's Analogue Tensionmeter User Manual is helpful if you want to learn more about proper usage).
Without regular calibration, your wheel builds may result in lower spoke tensions than expected, even though the readings on the meter remain the same. Calibration ensures that your tension meter's readings are properly aligned with actual spoke tensions, allowing for more consistent and accurate wheel builds.
Once your tension meter is calibrated, you have two options:
Adjust the meter: This is typically not recommended, as adjusting the tension meter may void the warranty.
Update the conversion table: You can create a new table that correlates the meter's readings with actual spoke tensions. If you're interested, SpokeCalc offers a free, user-friendly online tool for creating your own custom tension charts.
How to Calibrate Your Tension Meter

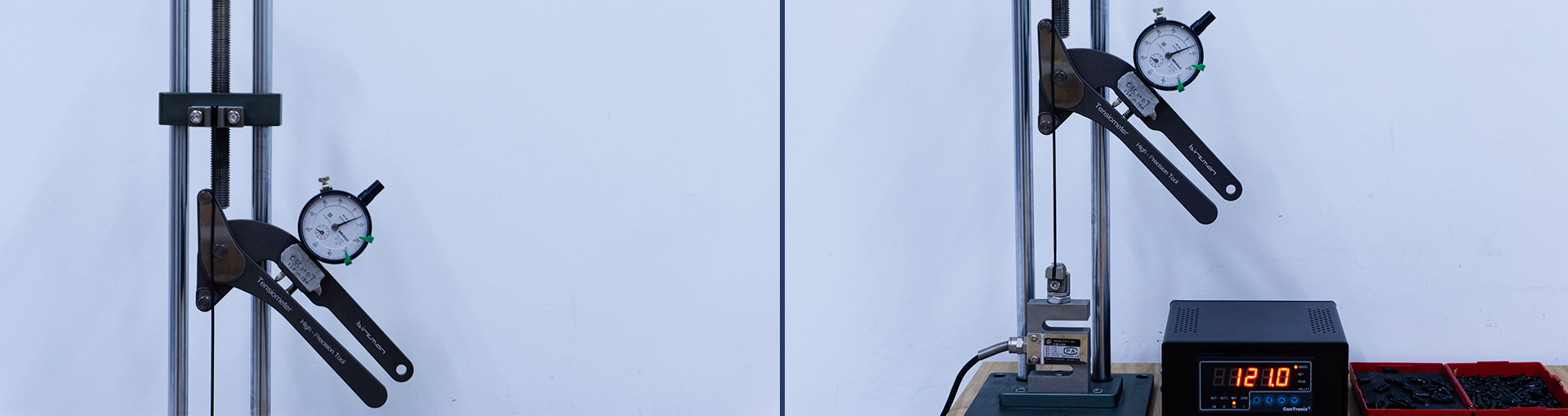

The calibration process involves comparing your tension meter’s readings to actual spoke tensions. This can be done with a calibration device that provides a controlled environment to clamp and tension a spoke while a sensor measures the exact tension.
Here’s a step-by-step guide to calibrating the tension meter using our in-house calibration device: Step 1: Install the nipple onto the spoke, ensuring that all threads on the spoke are fully covered. Step 2: Fix the spoke head (hub end) onto the base of the calibration device. Step 3: Firmly attach the nipple into the upper clamping slot. If needed, use the revolving handle to adjust the upper clamp height to suit the spoke length. Step 4: Lift the upper clamping platform using the revolving handle to achieve the desired spoke tension. Monitor the sensor reading to ensure proper tension. Step 5: Measure the spoke tension by attaching the tension meter to the sample spoke. The reading on your meter should correspond to the desired tension value.
Our calibration device is versatile, equipped with different spoke head fixtures that can accommodate various spoke types, including:
J-bend steel spokes
Straight-pull steel spokes
Straight-pull carbon spokes
If you'd like to learn more about spoke tension meter calibration or are interested in sourcing a calibration device, feel free to contact us. We’re also happy to provide wheel-building solutions to support your business.
Final Thoughts
Regular calibration of your spoke tension meter is essential for maintaining the accuracy of your wheel builds. A properly calibrated meter ensures that you can consistently achieve the right spoke tension, which is critical for wheel strength, durability, and overall performance. If you need guidance on calibration or want to explore the tools we offer, we're here to help!
