Latex + EPS Technology: Enabling the Development of Next-Generation Carbon Handlebars
Introduction
Discover how Latex + EPS molding technology helps carbon handlebar brands develop lightweight, durable, and high-performance handlebars with greater design flexibility, improved consistency, and advanced OEM/ODM manufacturing support from NTP.
Details
In today’s competitive cycling market, premium handlebars are no longer defined only by weight reduction.
For handlebar brands, developing a successful carbon handlebar requires a careful balance between:
lightweight construction
stiffness and handling precision
vibration absorption
aerodynamic performance
ergonomic design
long-term reliability
At the same time, modern handlebar designs are becoming increasingly complex. Integrated road cockpits, aerodynamic profiles, internal cable routing, and application-specific designs for road, gravel, and MTB all place higher demands on manufacturing technology.
While carbon fiber remains the foundation of high-performance components, the molding process plays an equally important role in determining the final product quality.
Latex + EPS molding technology provides handlebar manufacturers with greater control over carbon structures, enabling the development of lighter, more refined, and more competitive products.
What Is Latex + EPS Technology?
In carbon handlebar manufacturing, controlling the internal structure is critical.
Latex + EPS technology combines an EPS (Expanded Polystyrene) core with a latex bladder to provide internal support and pressure during the molding process.
The process generally includes four key steps.

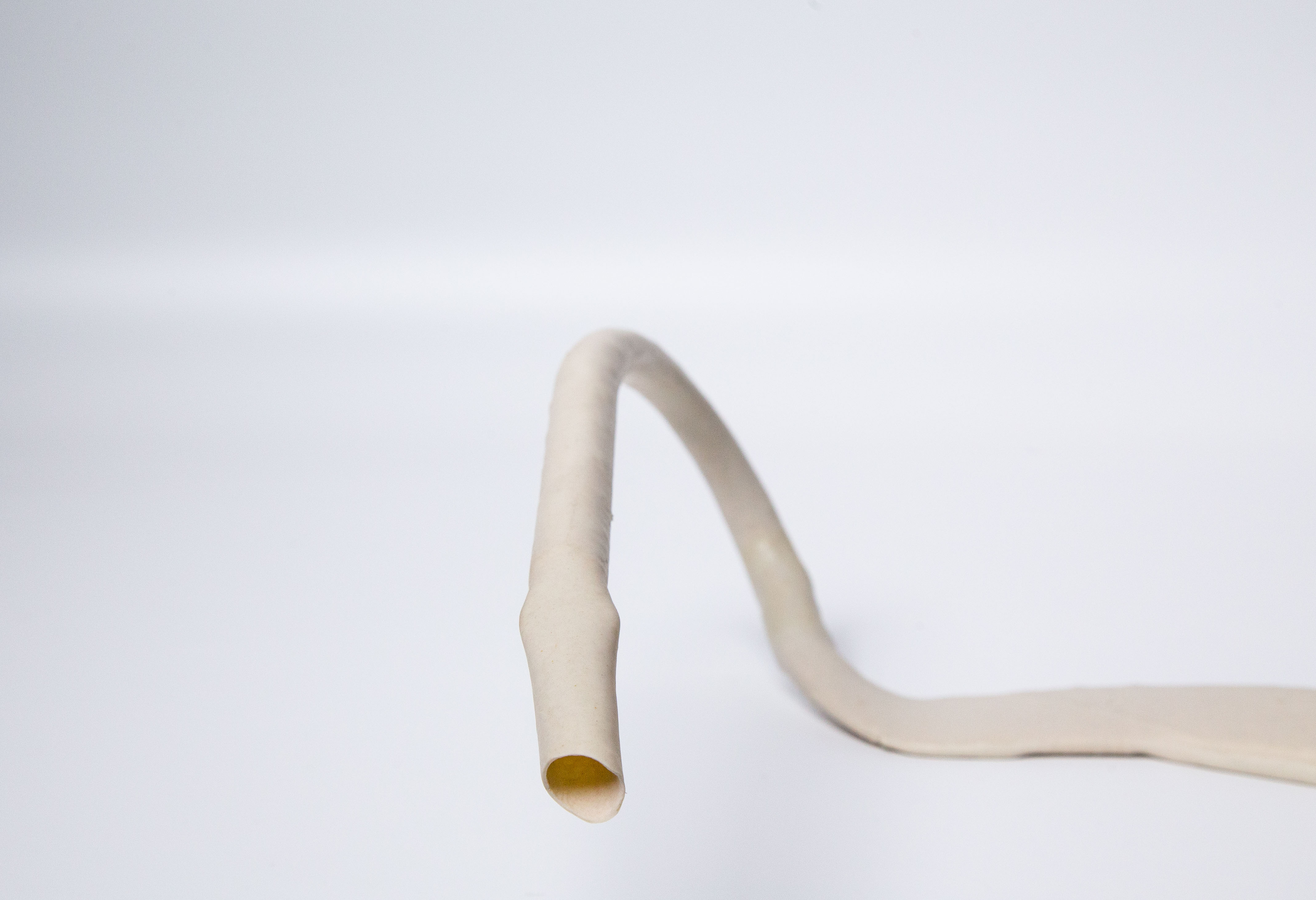

STEP 1. EPS Core Preparation
An EPS mandrel is manufactured according to the internal geometry of the handlebar. The foam is coated with latex.
The EPS core defines the internal shape of the component, allowing manufacturers to achieve more precise control over:
internal geometry
wall thickness distribution
cable routing space
structural reinforcement areas
Compared with the air bladder molding method, EPS provides better support for producing complex carbon structures.

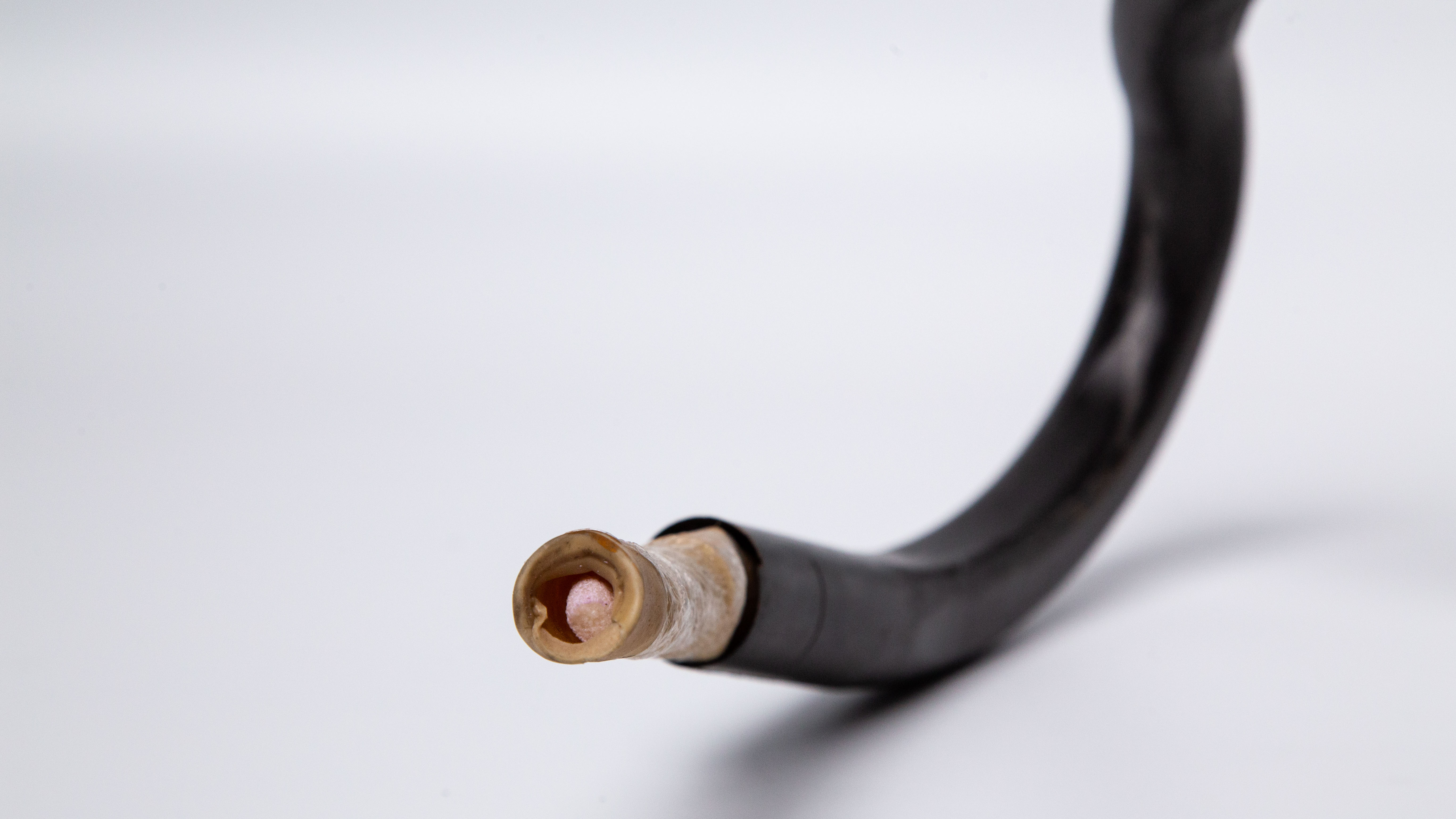

STEP 2. Carbon Layup Around the EPS Core
After the EPS core is prepared, carbon fiber layers are carefully positioned according to the structural requirements of the handlebar.
Different areas of a handlebar experience different types of loading:
Stem clamp area: requires high strength and resistance to torsional forces
Center section: requires stiffness for precise steering control
Drops or extensions: require a balance between stiffness, comfort, and impact resistance
Through optimized carbon layup design, manufacturers can place material where it contributes most to performance.
STEP 3. Latex-Assisted Compression During Molding
During curing, the latex bladder expands under heat and pressure. The applied pressure pushes the carbon layers against the mold surface, helping improve:
carbon layer consolidation
fiber positioning
resin distribution
structural consistency
Better compaction allows engineers to optimize the carbon structure instead of adding unnecessary material to compensate for manufacturing limitations.
STEP 4. EPS Removal and Final Processing
After curing, the EPS core is removed, leaving a lightweight hollow carbon structure. The result is a carbon handlebar with a precisely controlled internal structure and optimized performance characteristics.
Why Latex + EPS Technology Matters for Handlebar Brands
1. Greater Design Freedom for Differentiated Products
For handlebar brands, product differentiation is essential. However, many innovative designs are limited by manufacturing capability. Today’s premium handlebars often feature:
aerodynamic shapes
ergonomic transitions
integrated cable routing
These designs require precise control during molding. Latex + EPS technology provides stable internal support during production, allowing manufacturers to create more complex geometries while maintaining structural reliability.
For brands, this means greater freedom to develop products with unique designs and distinct market positioning.
2. Better Weight-to-Performance Optimization
The goal of a high-performance carbon handlebar is not simply achieving the lowest possible weight. A lightweight product must also provide:
sufficient stiffness for handling precision
durability under repeated loading
appropriate compliance for rider comfort
The challenge is finding the right balance.
With improved molding control, engineers can optimize:
fiber orientation
reinforcement areas

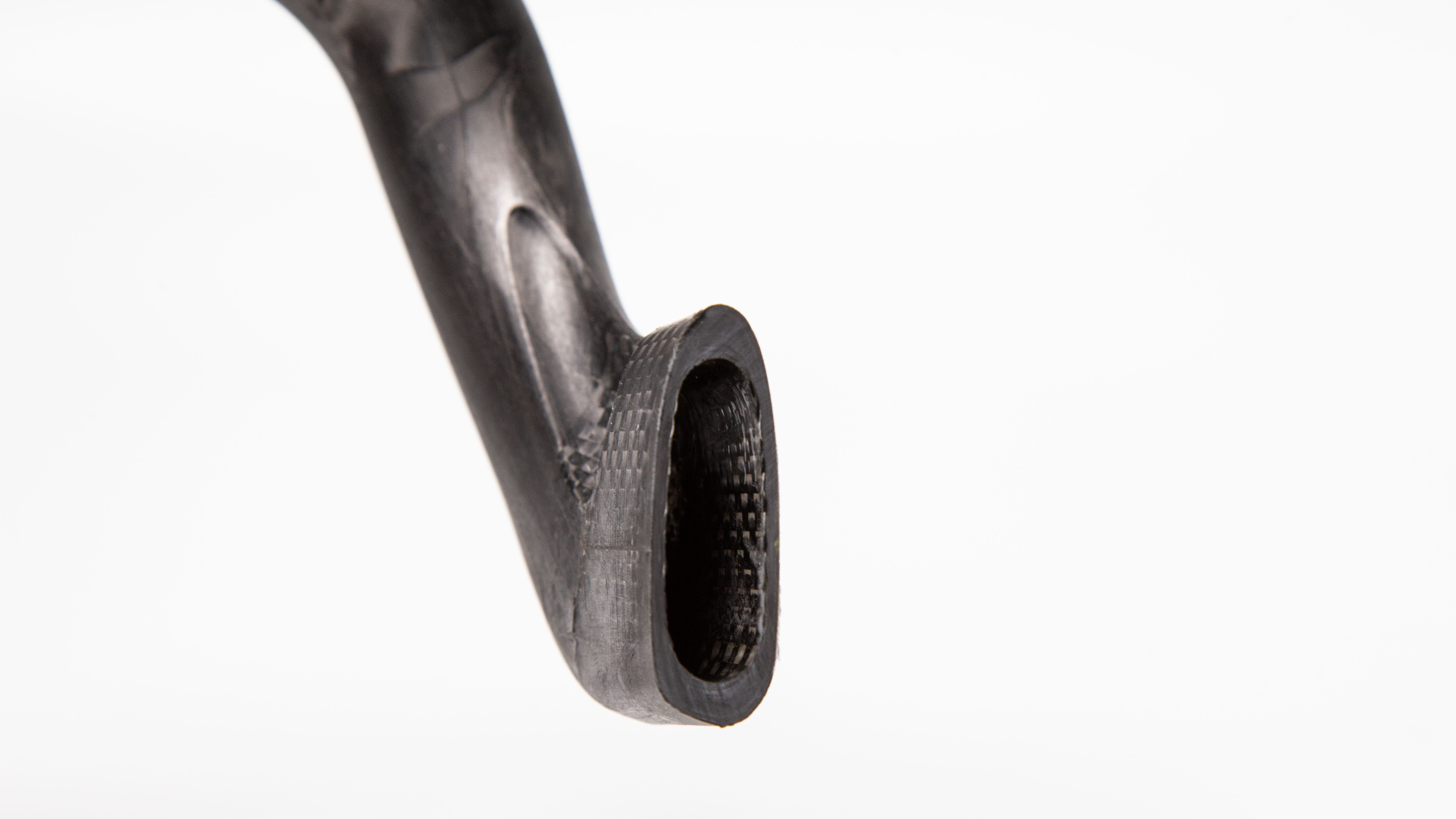

wall thickness (evenness)
local stiffness characteristics
Latex + EPS technology provides the manufacturing foundation for application-specific designs.
3. Improved Manufacturing Consistency for Premium Products
For handlebar brands, developing a successful prototype is only the beginning. The bigger challenge is achieving stable mass production. Premium products require consistency in:
dimensions
weight
stiffness characteristics
surface quality
Advanced molding technology helps manufacturers achieve better repeatability between production units. This is particularly important for brands building their reputation around high-performance components, where inconsistent product quality can directly affect customer trust.
4. Enhanced Durability and Long-Term Performance
For premium handlebars, lightweight performance must always be balanced with structural reliability. A handlebar experiences repeated loading during every ride. Therefore, manufacturing consistency is critical for long-term performance.
Latex + EPS molding technology helps improve control over the carbon manufacturing process by providing more uniform pressure distribution during curing. This contributes to:
better carbon layer consolidation
more accurate fiber positioning
reduced risk of internal voids or resin-rich areas
more consistent mechanical properties between products
For handlebar brands, this means greater confidence in product reliability and long-term performance. A premium carbon handlebar is not only defined by its weight or stiffness. It must also deliver consistent performance throughout its service life.
Understanding the Limitations of Latex + EPS Technology
Although Latex + EPS technology provides significant advantages for premium carbon handlebars, it is not the perfect solution for every product. Like any manufacturing process, it involves certain trade-offs.
Understanding these limitations helps brands select the right manufacturing approach according to their product positioning.
1. Higher Tooling and Development Cost
One of the main considerations of Latex + EPS technology is the higher initial investment.
Because the process requires dedicated EPS cores and additional preparation steps, tooling costs can be higher compared with more conventional molding methods.
This is especially relevant for:
new product development
low-volume projects
multiple geometry variations
For flagship products where performance and differentiation are the priority, the additional investment can be worthwhile. However, for entry-level or cost-focused products, alternative manufacturing solutions may provide better economic efficiency.
2. Longer Production Lead Time
Compared with simpler molding processes, Latex + EPS technology requires additional preparation before production.
The EPS cores need to be:
produced according to the product design
coated with latex
prepared and inspected before molding
These additional steps can increase development and production lead times.
3. Certain Extreme Designs Require Additional Evaluation
Latex + EPS technology provides greater design freedom, but there are still engineering limitations.
Because EPS is a relatively lightweight and brittle material, extremely thin or highly aggressive internal geometries may require careful evaluation during the design stage.
For example:
ultra-thin aerodynamic profiles
extremely narrow internal cavities
may create additional manufacturing challenges.
In these cases, engineers need to balance:
aerodynamic goals
weight targets
structural safety
manufacturing feasibility
The best carbon handlebar designs are not only innovative — they are designs that successfully balance performance ambition with engineering reality.
Turning Innovative Ideas into Competitive Products
As the cycling industry continues moving toward lighter, more aerodynamic, and more integrated carbon components, manufacturing capability has become a key factor in product success.
Latex + EPS technology provides the foundation for developing advanced carbon handlebars, but the final product performance depends on how effectively the technology is combined with:
product design (optimization)
optimized layup design
precise tooling
manufacturing experience
comprehensive testing
strict quality control
At NTP, we combine advanced molding technologies with comprehensive OEM/ODM development experience to help cycling brands bring innovative handlebar concepts to market.
Whether developing a flagship integrated cockpit or a new generation of performance handlebars, we work with our partners from the initial concept stage through prototype validation and mass production.
Have a new carbon handlebar project in mind? Contact NTP to discuss how we can help turn your concept into a market-ready product.
